Pharmaceutical Hot Air Drying Oven with GMP Compliance

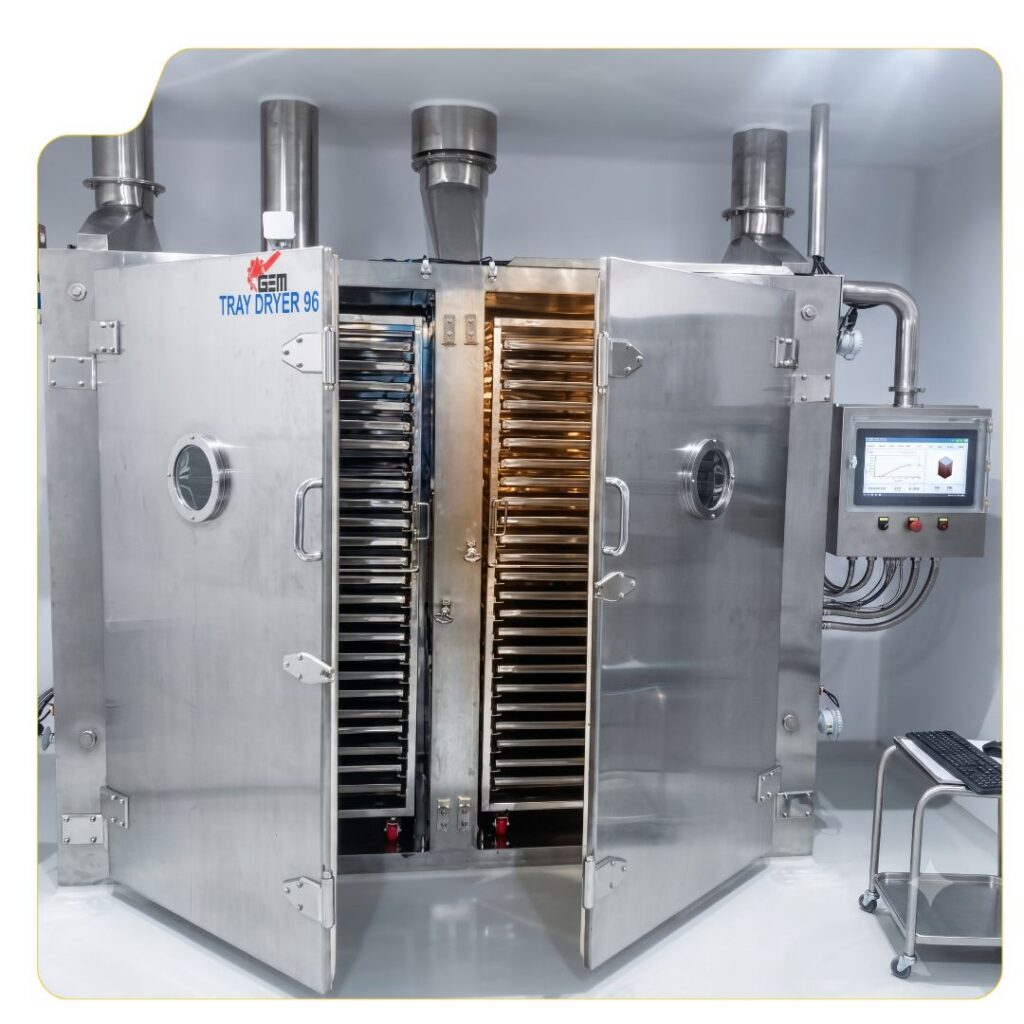

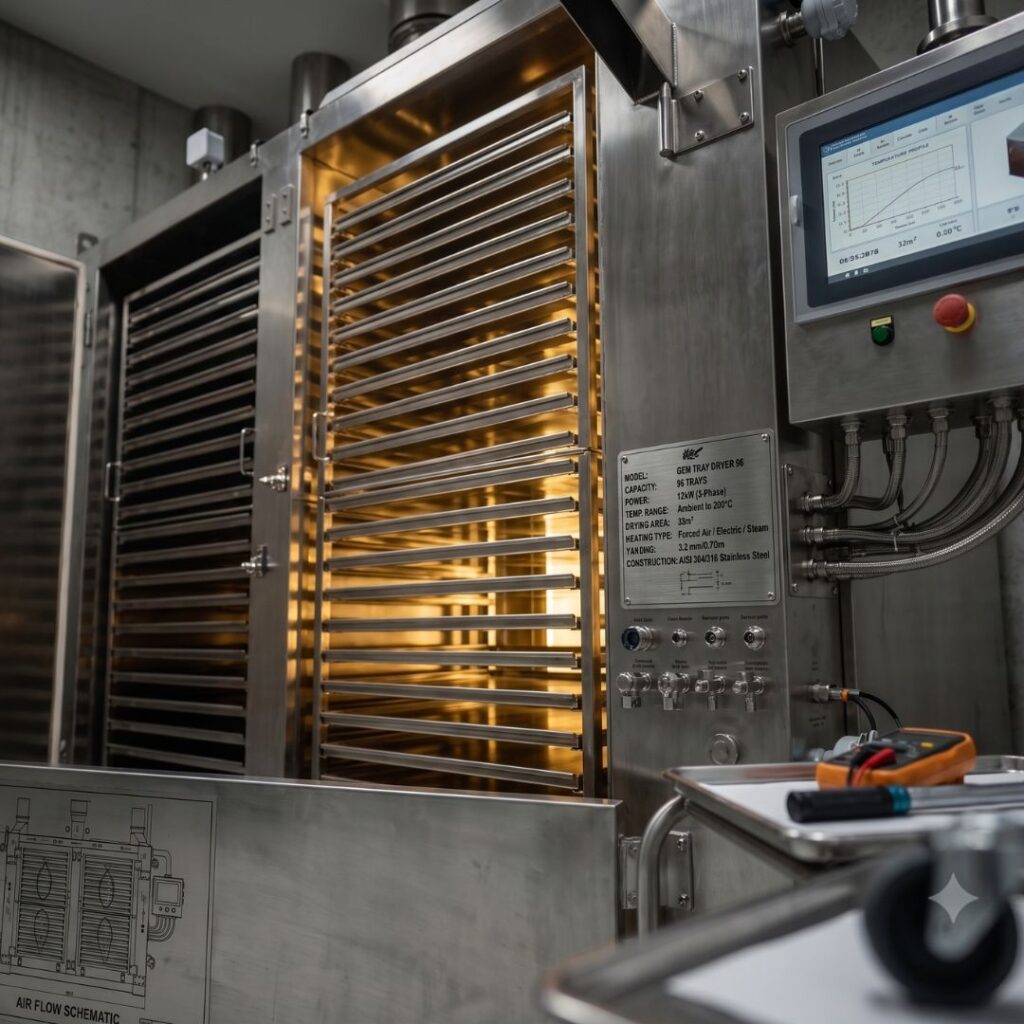

Tray Dryer
Gem Pharma Machineries designs and manufactures high-performance Tray Dryers, also known as Cabinet Dryers or Pharma Ovens, that provide uniform, contamination-free drying of wet granules, powders, and other solid pharmaceutical products. Our tray dryers are engineered for precise temperature control, efficient air circulation, and complete regulatory compliance, making them an indispensable piece of equipment in any solid oral dosage form manufacturing line.
Wet Granules
Powder Drugs
Herbal Products
Nutraceuticals
Cosmetics
Food
Construction and Design Features
Every Gem Pharma Tray Dryer is fabricated to meet the rigorous demands of pharmaceutical production:
Cabinet: The outer cabinet is constructed from SS304 with a pharmaceutical-grade matt finish. The internal chamber walls are in SS316 or SS316L, mirror-polished to Ra ≤ 0.6 µm for easy cleaning and corrosion resistance.
Insulation: High-density mineral wool or ceramic wool insulation (75 mm to 100 mm thick) minimises heat loss and ensures energy-efficient operation.
Air Handling Unit: A GMP-compliant AHU is side-mounted or top-mounted, housing the filter, heating elements, and a dynamically balanced backward-curved blower. The blower motor is externally mounted for heat isolation.
Heating System: Electric heaters with SS304 tubular elements or a steam radiator (SS316 tubes, SS304 fins) with condensate removal. Heater capacity is calculated based on moisture load.
Seals & Gaskets: All door seals and internal gaskets are FDA-compliant silicone or PTFE, resistant to high temperatures and chemical attack.
Construction and Design Features
Every Gem Pharma Tray Dryer is fabricated to meet the rigorous demands of pharmaceutical production:
Cabinet: The outer cabinet is constructed from SS304 with a pharmaceutical-grade matt finish. The internal chamber walls are in SS316 or SS316L, mirror-polished to Ra ≤ 0.6 µm for easy cleaning and corrosion resistance.
Insulation: High-density mineral wool or ceramic wool insulation (75 mm to 100 mm thick) minimises heat loss and ensures energy-efficient operation.
Air Handling Unit: A GMP-compliant AHU is side-mounted or top-mounted, housing the filter, heating elements, and a dynamically balanced backward-curved blower. The blower motor is externally mounted for heat isolation.
Heating System: Electric heaters with SS304 tubular elements or a steam radiator (SS316 tubes, SS304 fins) with condensate removal. Heater capacity is calculated based on moisture load.
Seals & Gaskets: All door seals and internal gaskets are FDA-compliant silicone or PTFE, resistant to high temperatures and chemical attack.
Control System and Automation
Our tray dryers are equipped with an advanced PLC-HMI control platform for total process control and documentation:
PID Temperature Control: Precise, auto-tuned control loop ensures the chamber temperature is maintained within a tight band.
Air Flow & Damper Control: Blower speed can be regulated through a VFD, and the exhaust damper can be manually or automatically positioned.
Timer & Sequence Logic: Pre-programmable drying cycles with ramp, soak, and cool-down phases.
Safety Interlocks: Door-open cut-off for blower and heater, over-temperature protection, and motor overload relays.
Data Recording: Real-time trending of temperature and other parameters. Batch reports with electronic signatures for 21 CFR Part 11 compliance (optional).
Alarms: Audio-visual alarms for temperature deviation, blower failure, and heater trip.
GMP Compliance and Safety Features
CIP Compatibility: Internally, the chamber is designed with coved corners and a sloped floor to drain water, making manual washing or integrated CIP spray bars effective.
HEPA Filtration: An optional terminal HEPA filter ensures that the air in contact with the product meets ISO 5 / Class 100 standards, critical for potent or sensitive APIs.
Flame-Proof Construction: For solvent-based products, we offer flame-proof motors, spark-proof construction, and pneumatic controls.
Validation Access Ports: Standard ports for thermocouple insertion allow for thermal mapping studies (empty and loaded chamber) to validate temperature distribution.
Single-Piece Gaskets: No crevices for product build-up.
GMP Compliance and Safety Features
CIP Compatibility: Internally, the chamber is designed with coved corners and a sloped floor to drain water, making manual washing or integrated CIP spray bars effective.
HEPA Filtration: An optional terminal HEPA filter ensures that the air in contact with the product meets ISO 5 / Class 100 standards, critical for potent or sensitive APIs.
Flame-Proof Construction: For solvent-based products, we offer flame-proof motors, spark-proof construction, and pneumatic controls.
Validation Access Ports: Standard ports for thermocouple insertion allow for thermal mapping studies (empty and loaded chamber) to validate temperature distribution.
Single-Piece Gaskets: No crevices for product build-up.
