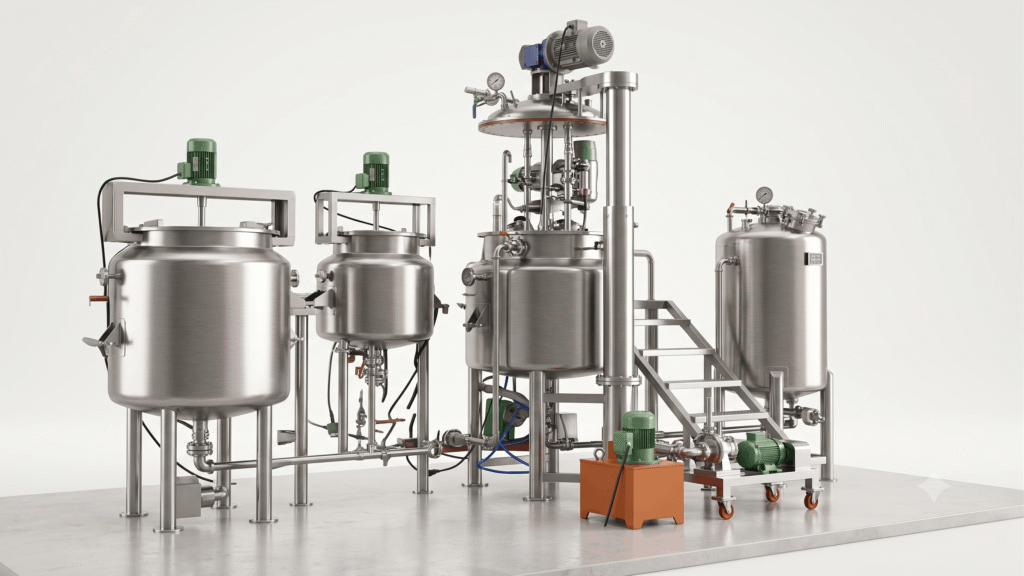

Ointment Preparation Plant

Litres per batch

50L–10K

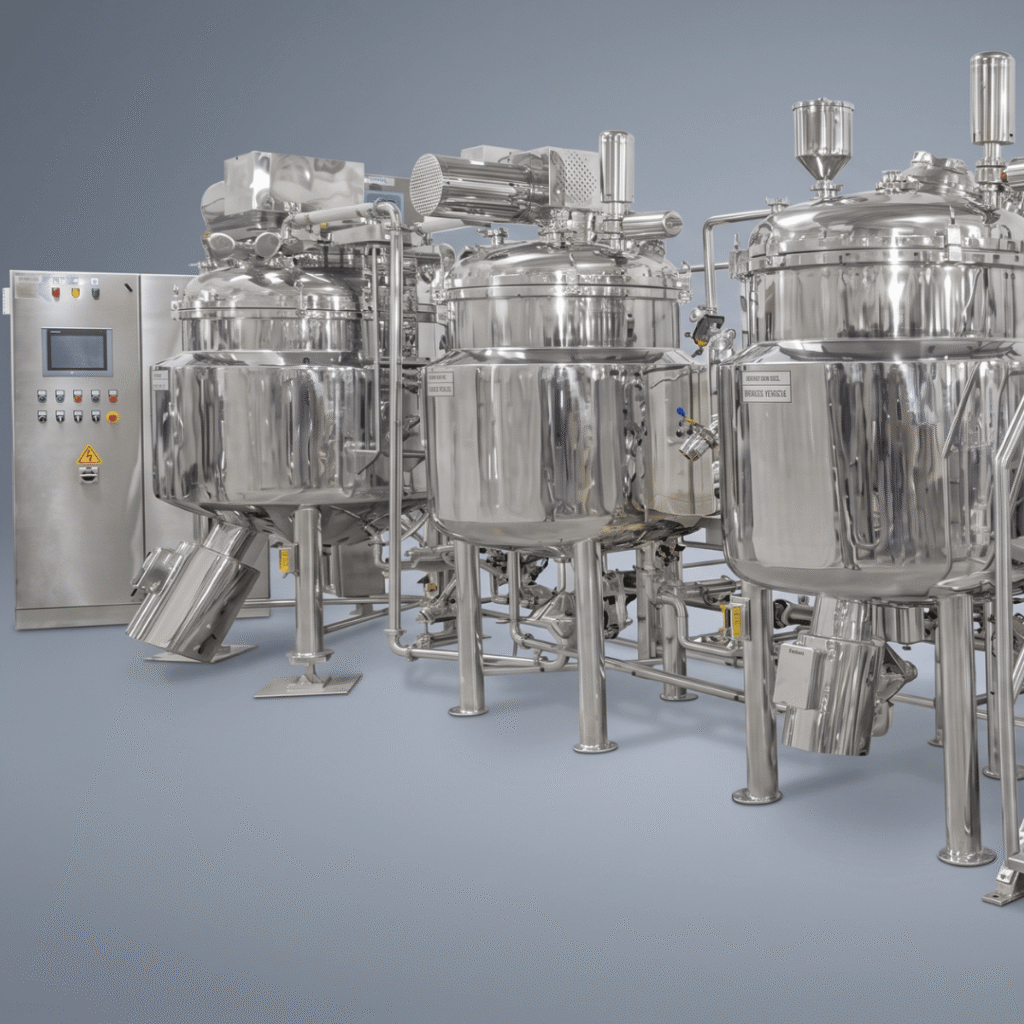

A fully integrated, GMP-compliant manufacturing plant for the production of ointments, creams, gels, lotions, and topical formulations. High-shear homogenisation, vacuum emulsification, jacketed vessel heating and cooling. This is a all in one closed, validated system.

Creams

Gels

Lotion

Topical Formulations

Vacuum Emulsification

WIP/CIP

Built for precision semi-solid manufacturing

Every subsystem is designed to deliver batch-to-batch reproducibility, full CIP compliance, and regulatory documentation readiness.

Vacuum emulsification

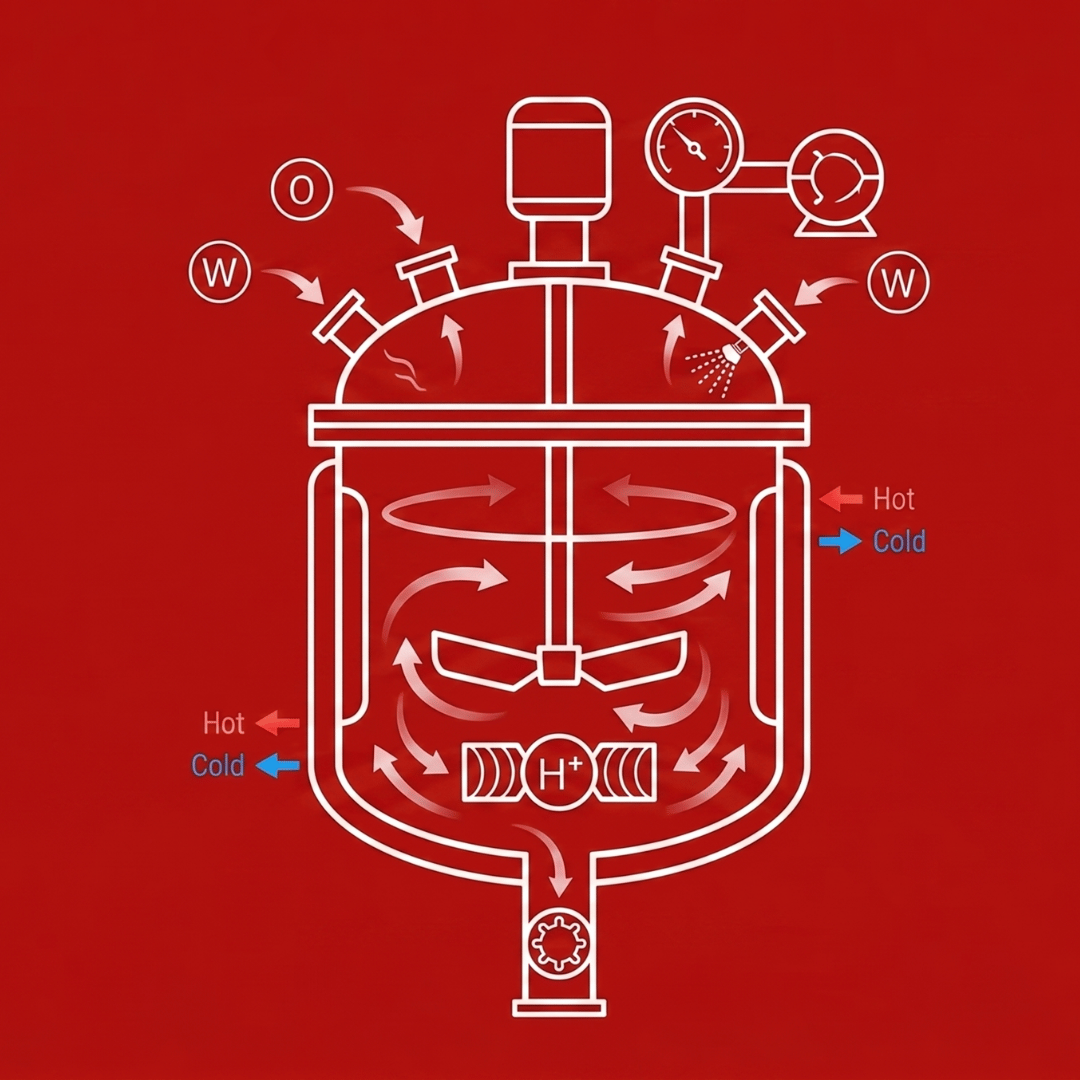

Complete emulsification under vacuum prevents air entrapment, reduces oxidative degradation, and ensures a stable, fine droplet size distribution. Vacuum-rated vessel and all fittings rated to full operational vacuum.

Precision jacket heating & cooling

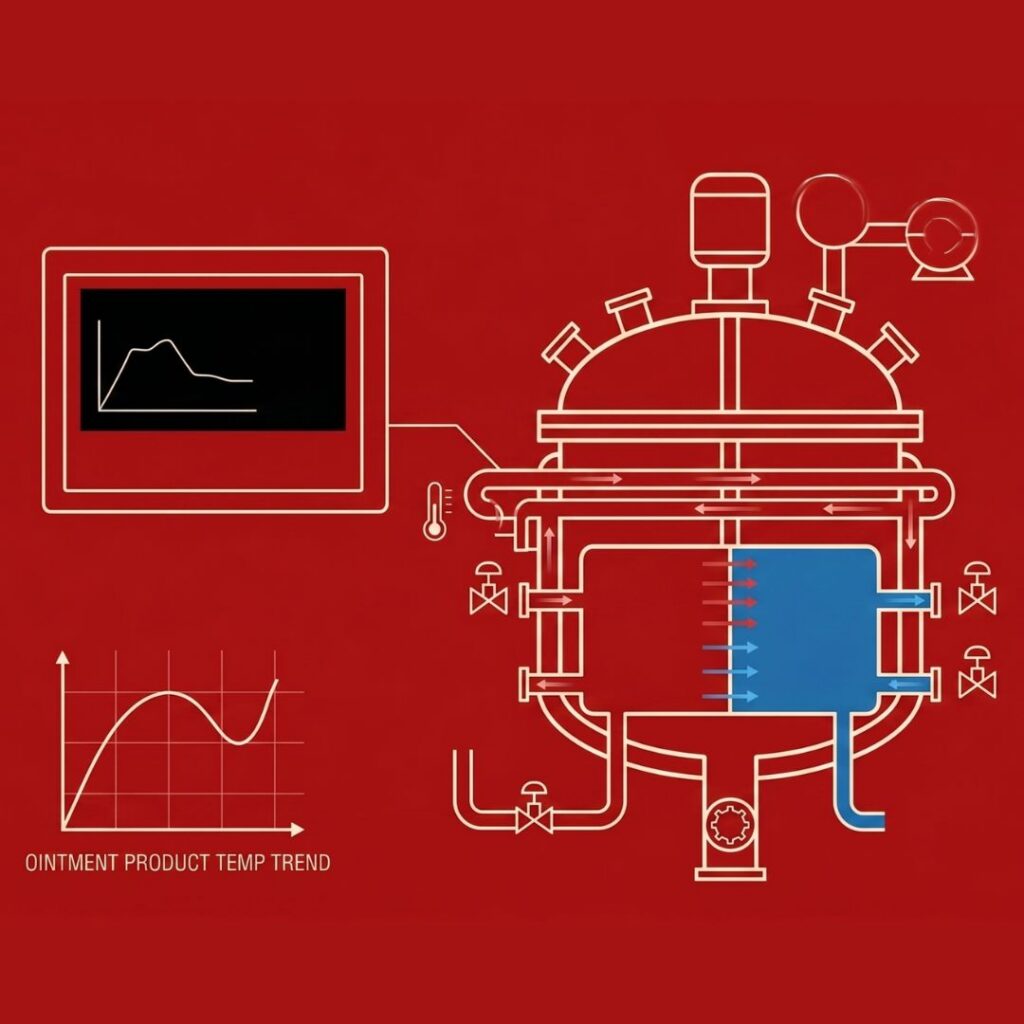

Dual-zone jacketed vessel with independent heating (steam or hot water) and cooling (chilled water) circuits. PLC-controlled temperature ramps with ±1°C accuracy – critical for emulsion stability and crystal form.

Triple mixing system

Anchor agitator provides bulk mixing and heat transfer. Wall scrapers ensure no cold spots. Bottom homogeniser generates high shear at the emulsion interface – three mechanisms working simultaneously under one PLC control system.

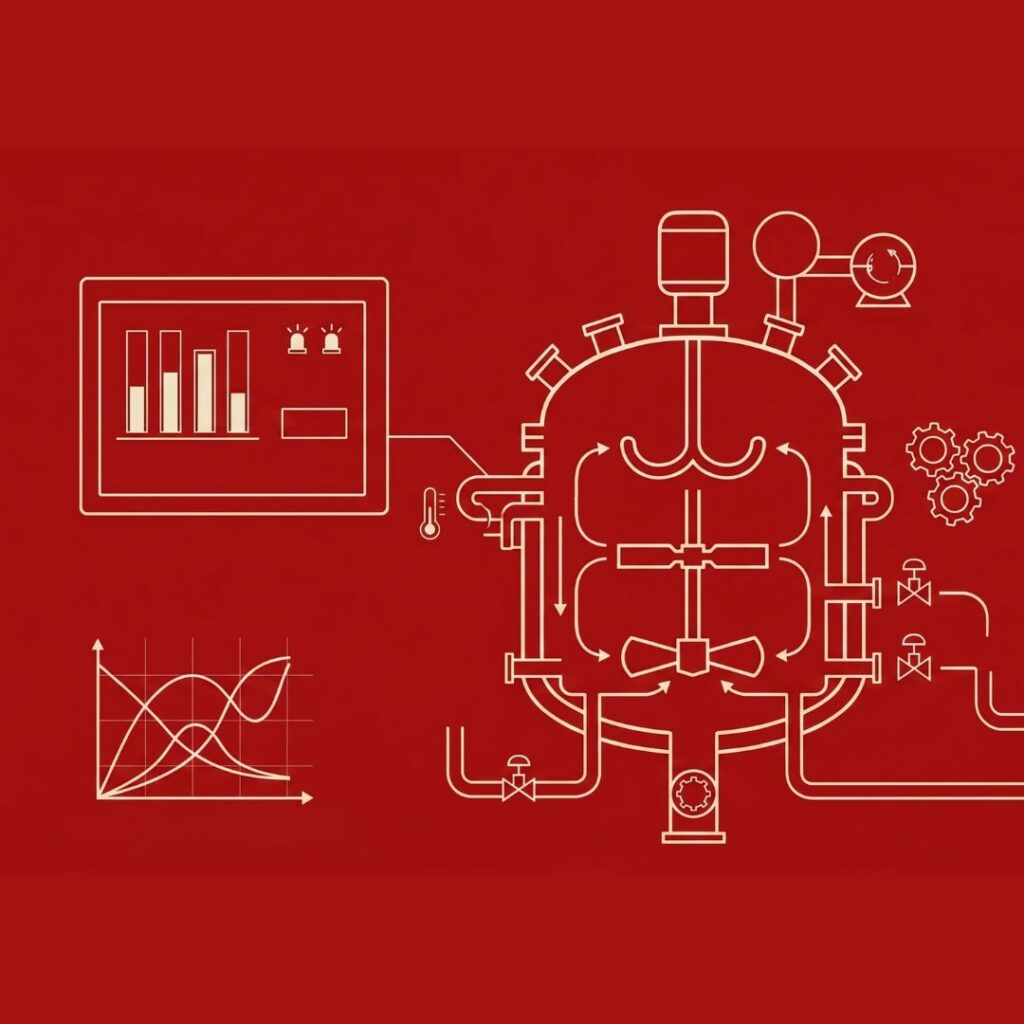

PLC / SCADA recipe control

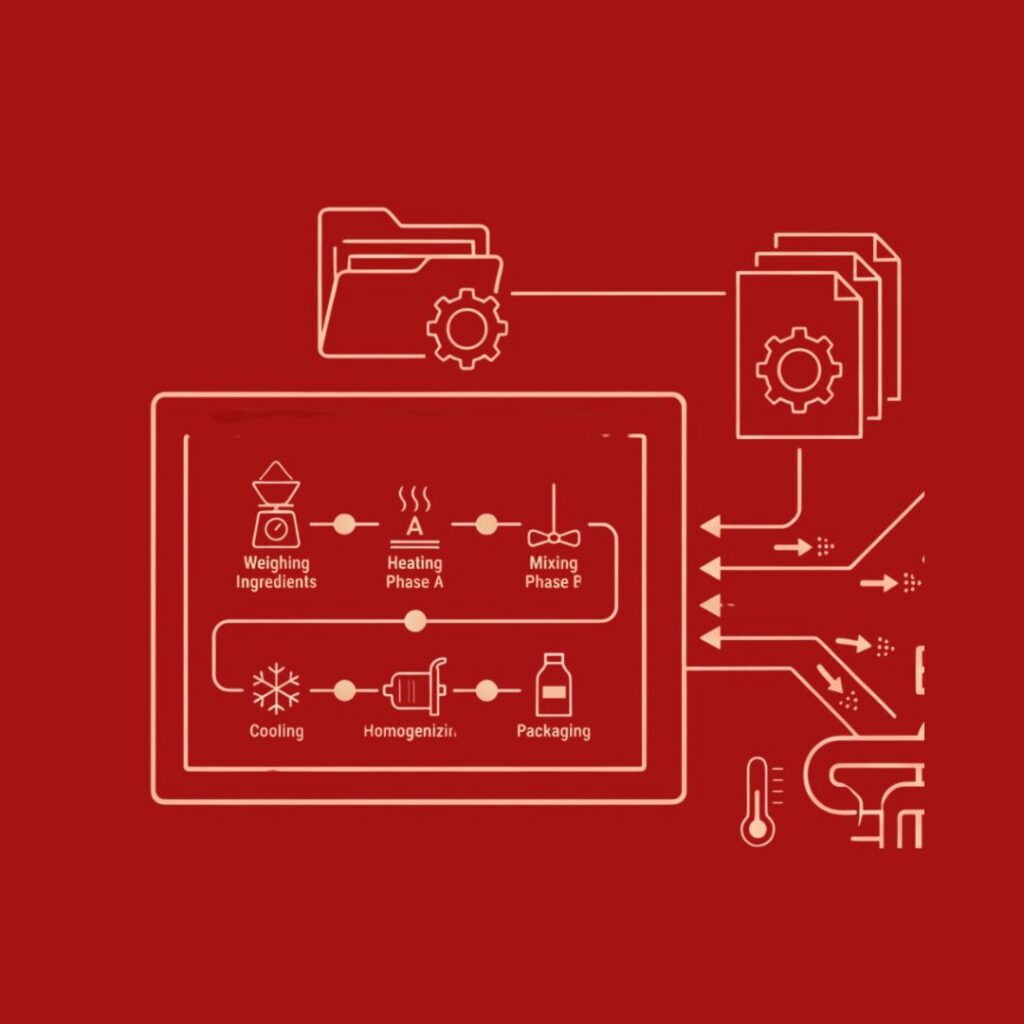

Fully programmable recipes for each product — defining temperature profile, agitator speeds, vacuum levels, mixing times, and ingredient addition sequences. Batch records generated automatically for GMP traceability.

Automated WIP / CIP

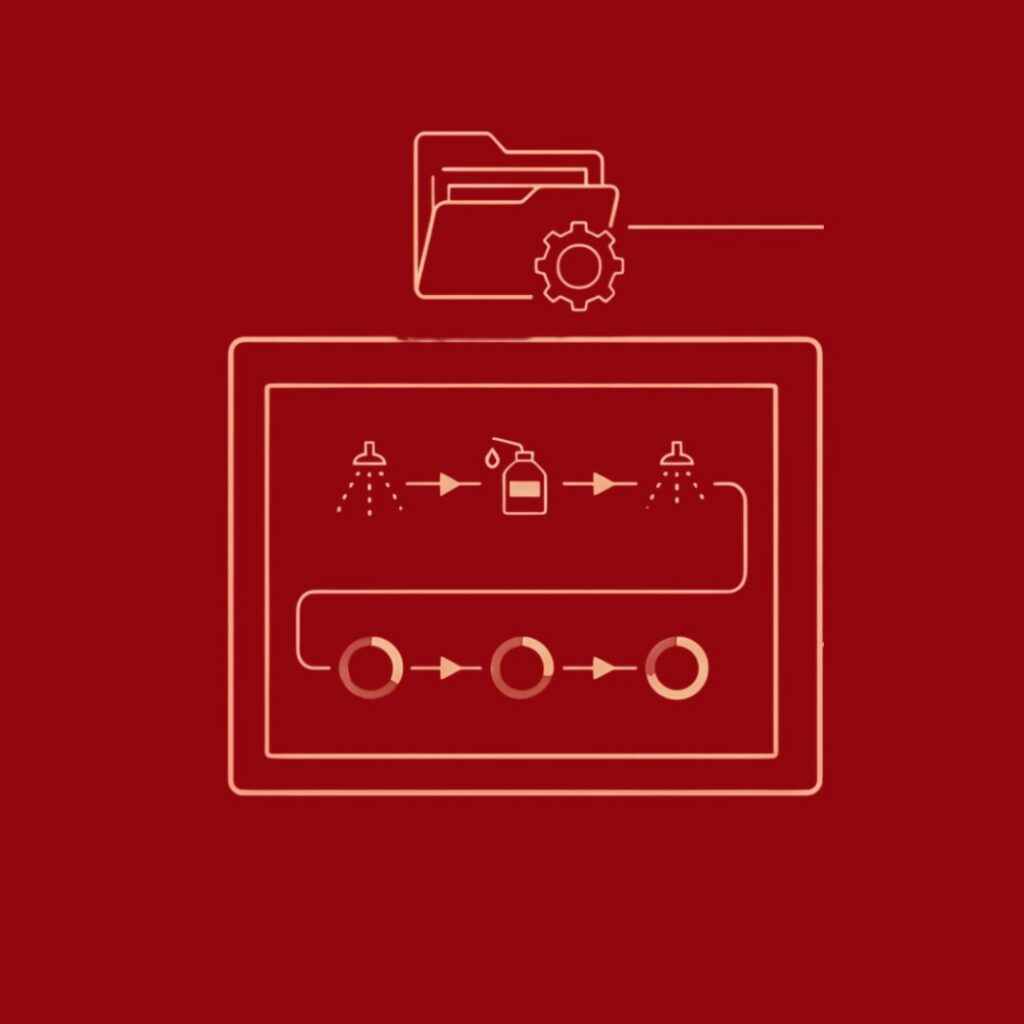

Spray ball nozzles inside the main vessel and phase vessels for validated wash-in-place. PLC-controlled cleaning sequence with detergent wash, rinse, and final rinse cycles. This system provides TOC and conductivity monitoring.

Closed, contained system

All transfers between phase vessels and main vessel are made under vacuum through sanitary pipework. There is no open transfers, no contamination risk, and no operator exposure to product or cleaning agents.

How the plant operates -Step by step

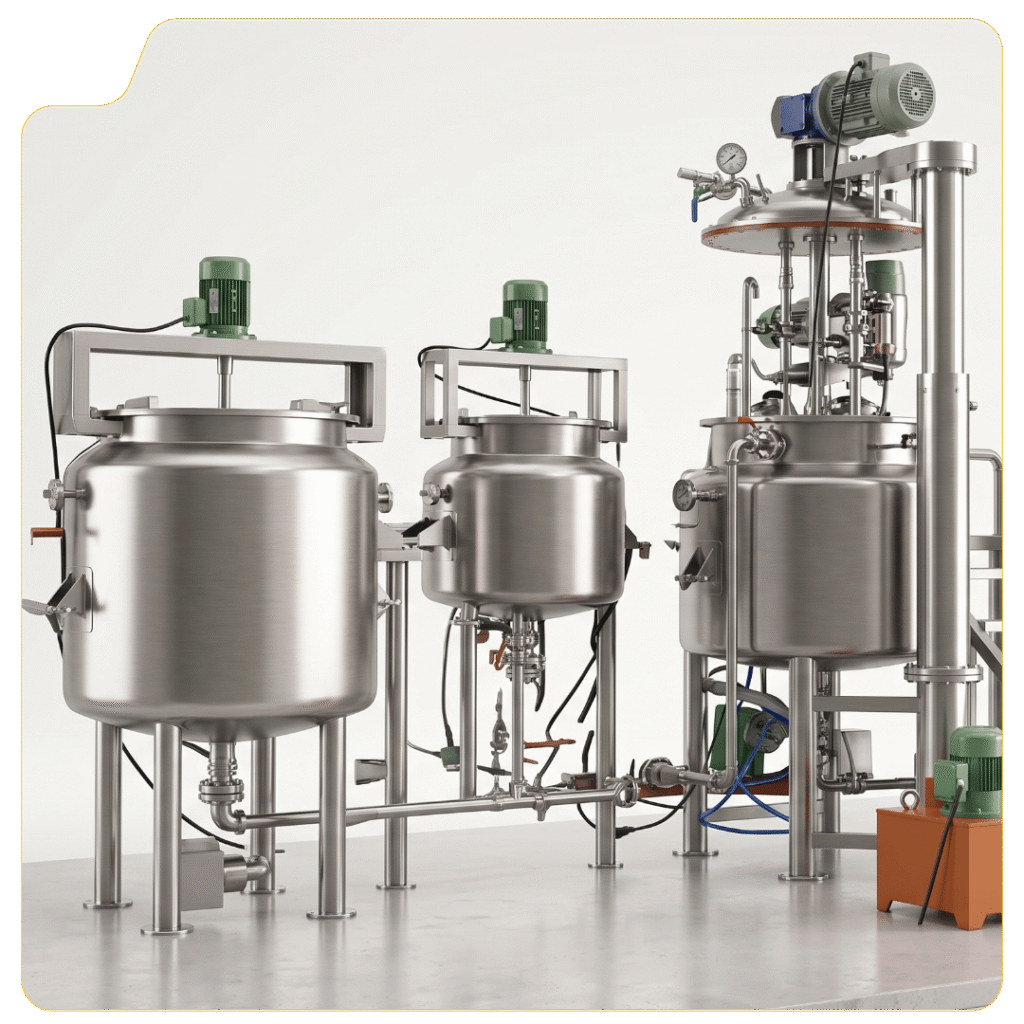

Water phase preparation

Water-soluble ingredients (humectants, preservatives, hydrophilic actives) are dissolved in the water phase vessel under controlled heating. Temperature typically 70–80°C with stirring until complete dissolution and homogeneity.

Water phase preparation

Transfer to main manufacturing vessel

Both phases are transferred to the main manufacturing vessel via vacuum or pump. The oil phase transferred first, followed by the water phase. Vacuum seals the vessel preventing air entrainment and contamination.

Controlled cooling

Chilled water circulates through the jacket to cool the emulsion to the required addition temperature (typically 40–45°C). The anchor agitator and wall scrapers run continuously to prevent surface crusting and ensure uniform temperature drop across the entire batch.

Oil / wax phase preparation

Oil-soluble waxes, emollients, emulsifiers, and lipophilic actives are melted together in the oil phase vessel. Heated to 70–80°C until all waxes are fully melted and the blend is homogeneous and clear.

Emulsification under vacuum

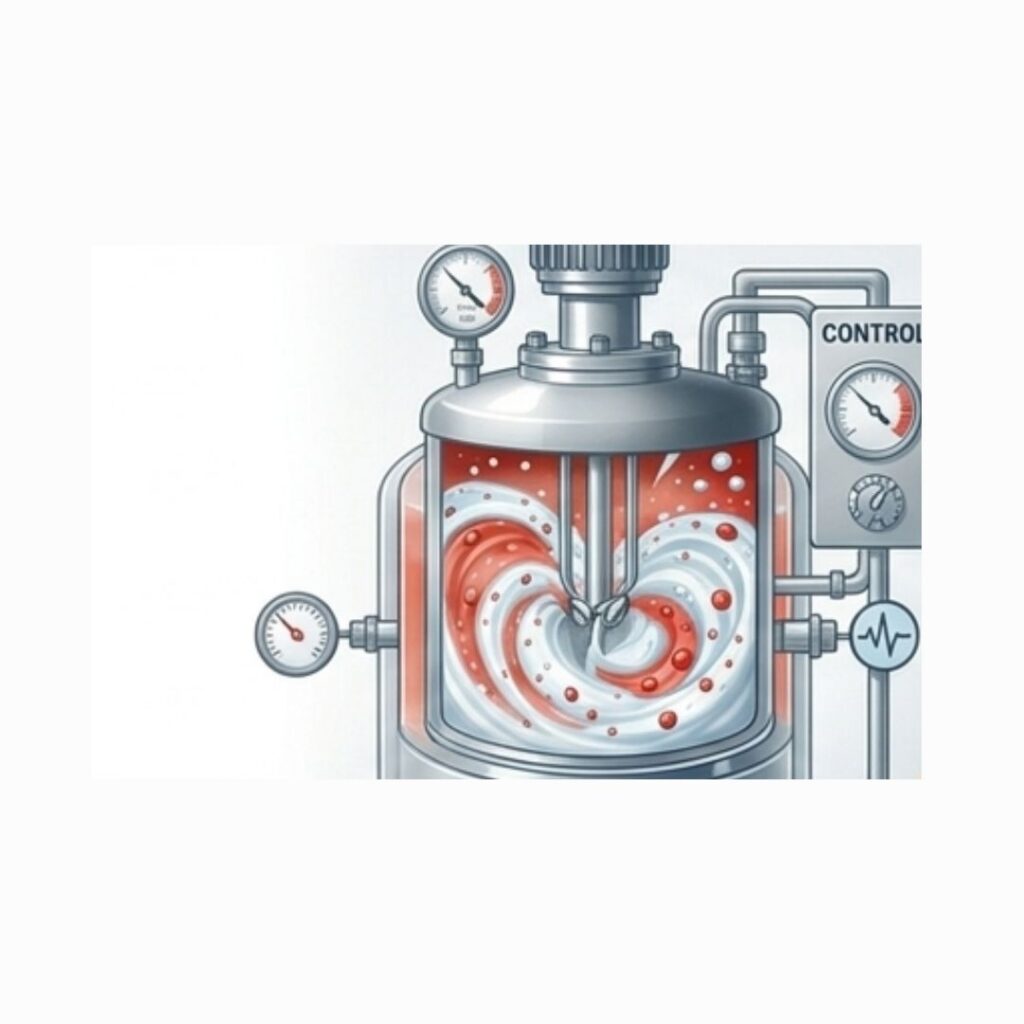

The high-shear bottom homogeniser and top anchor agitator run simultaneously under full vacuum. The homogeniser creates the primary oil-in-water or water-in-oil emulsion while the anchor blends the bulk, helping generating a fine, stable droplet size distribution throughout the vessel.

Addition of heat-sensitive ingredients

Fragrance, colour, heat-sensitive actives, and volatile ingredients are added at the lower temperature. In-vessel vacuum prevents evaporation loss of volatile components. A final homogenisation pass ensures uniform dispersion.

Materials & construction

Contact material	SS 316L, electropolished
Non-contact material	SS 304
Internal surface finish	Ra ≤ 0.4 µm
Scraper material	PTFE / SS 316L
Gaskets & seals	FDA silicone / PTFE
Vessel design standard	ASME BPE / GMP

Process parameters

Vessel capacity	50 L – 10,000 L
Working volume	60–80% of total volume
Jacket temperature range	5°C – 150°C
Temperature accuracy	±1°C (PLC-controlled)
Vacuum level	Up to –0.9 bar
Homogeniser speed	VFD, up to 3500 RPM
Anchor speed	VFD, 5–60 RPM

Ointments

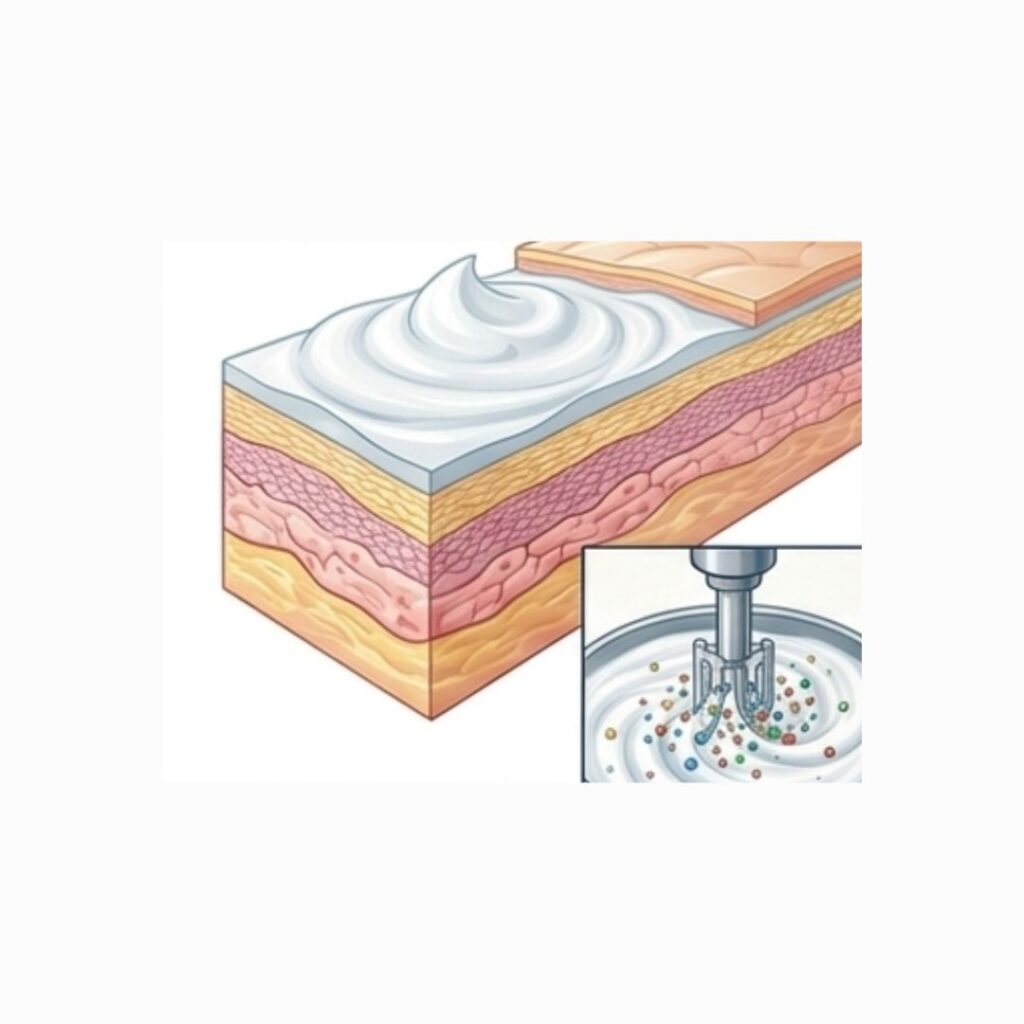

Anhydrous or water-based greasy preparations for skin protection, drug delivery, and wound care. Requires high-shear dispersion of active ingredients in base.

Creams

Oil-in-water or water-in-oil emulsions requiring controlled emulsification under vacuum for stability. Most cosmetic and pharmaceutical topicals.

Gels

Clear or opaque hydrophilic gels from carbomers, cellulose derivatives, or natural polymers. Requires precise temperature control during polymer hydration.

Lotions

Low-viscosity emulsions for large body surface area application. Similar emulsification process to creams but with higher water content and lower viscosity.

Pastes

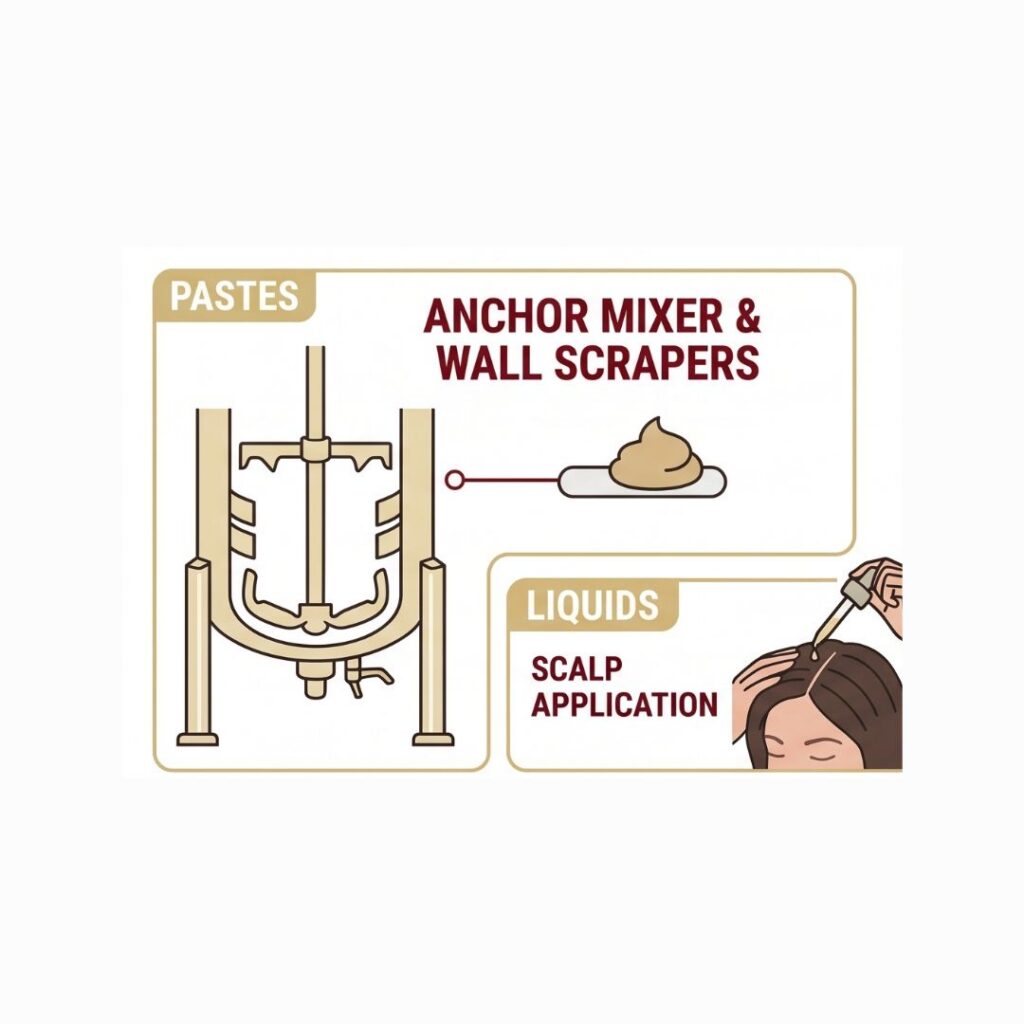

High solids-content semi-solid preparations for skin protection. High viscosity requires heavy-duty anchor agitator with wall scrapers and vacuum mixing.

Liquid topicals

Solutions and suspensions for topical application — scalp treatments, antiseptic solutions, and liquid formulations requiring temperature-controlled mixing.

Why Choose Gem Pharma Ointment Plants?

Turnkey Engineering: We provide full end-to-end integration, including internal piping, transfer pumps (lobe or gear pumps), validation documentation (DQ/IQ/OQ), and commissioning.
Zero Cross-Contamination: Closed-loop pipeline transfer utilizes a vacuum system, entirely preventing human intervention and environmental contact.
Energy Efficient Jackets: Specially baffled jackets ensure rapid heating and cooling cycles, reducing batch processing time by up to 30%.

Built to global standards

GMP compliant

FDA 21 CFR Part 11

EU GMP Annex 11

ATEX / FLP rated
