Available batch range
5kg to 300kg

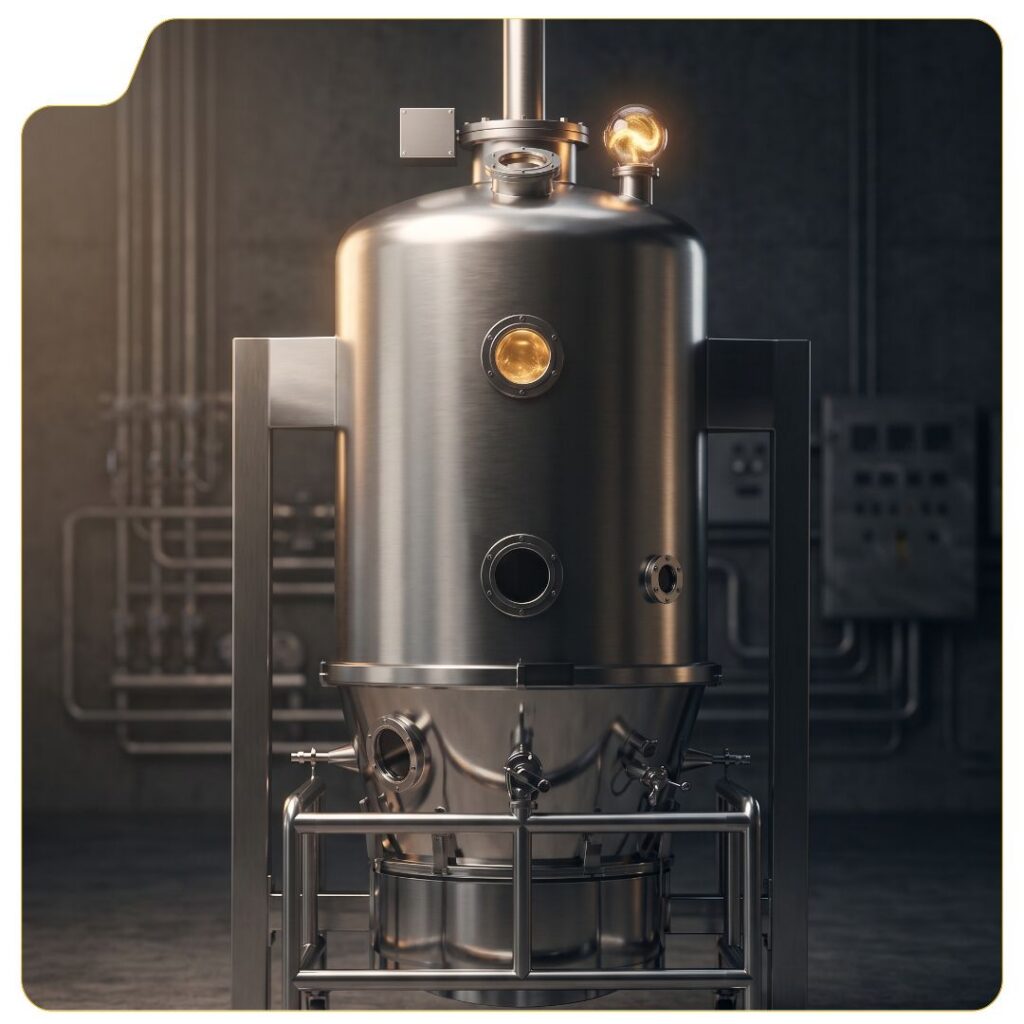

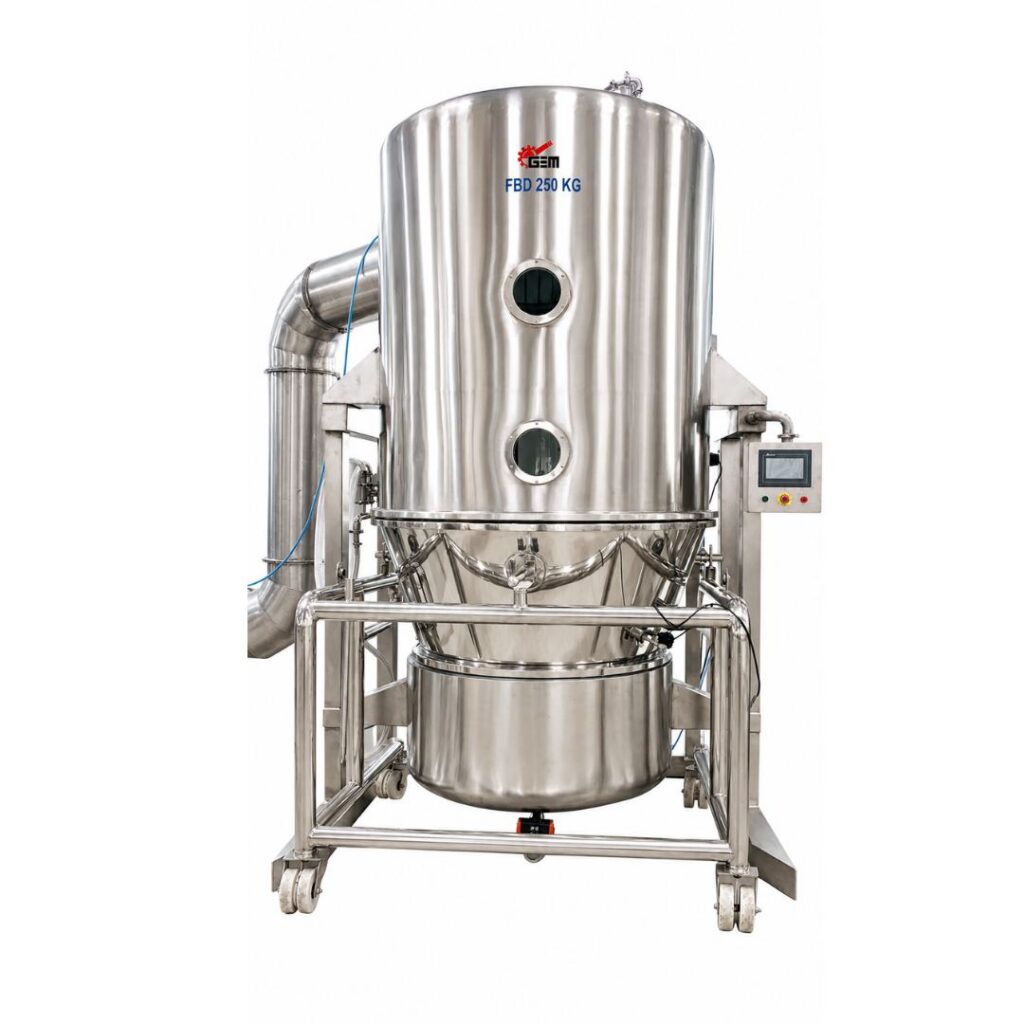

Fluid Bed Dryer
A versatile fluidised bed system for drying, granulating, and coating pharmaceutical and nutraceutical powders. Uniform airflow penetrates every particle for consistent moisture removal, faster cycle times, and fully reproducible batch quality.
Pharmaceuticals
Nutraceuticals
Food & Beverages
Homecare
Cosmetics
Chemicals
Four processing modes in One machine

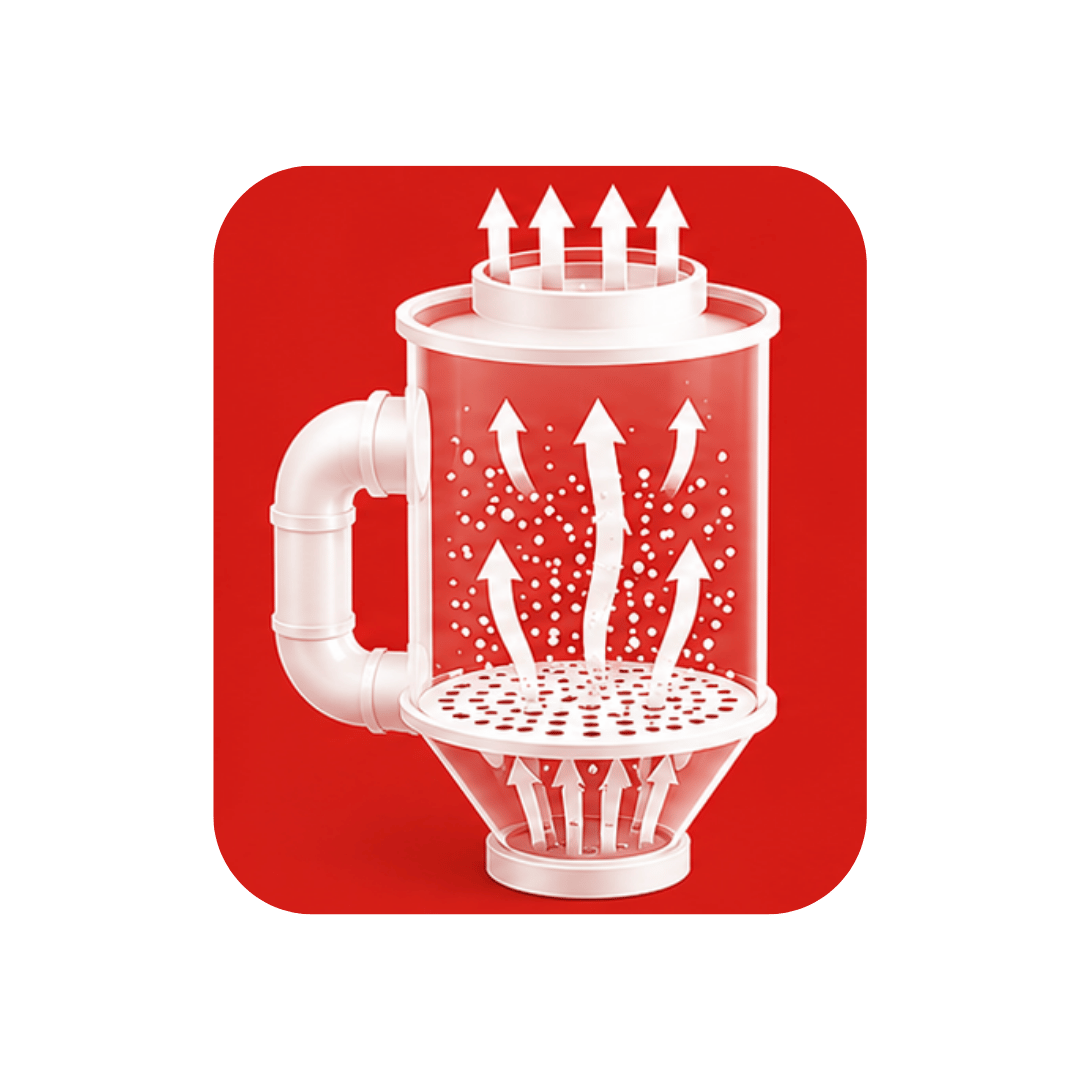

Fluid bed drying (FBD)
Uniform hot-air drying of wet granules discharged from the RMG. Programmable temperature and airflow profiles ensure consistent Loss on Drying (LOD) across every particle in the batch.

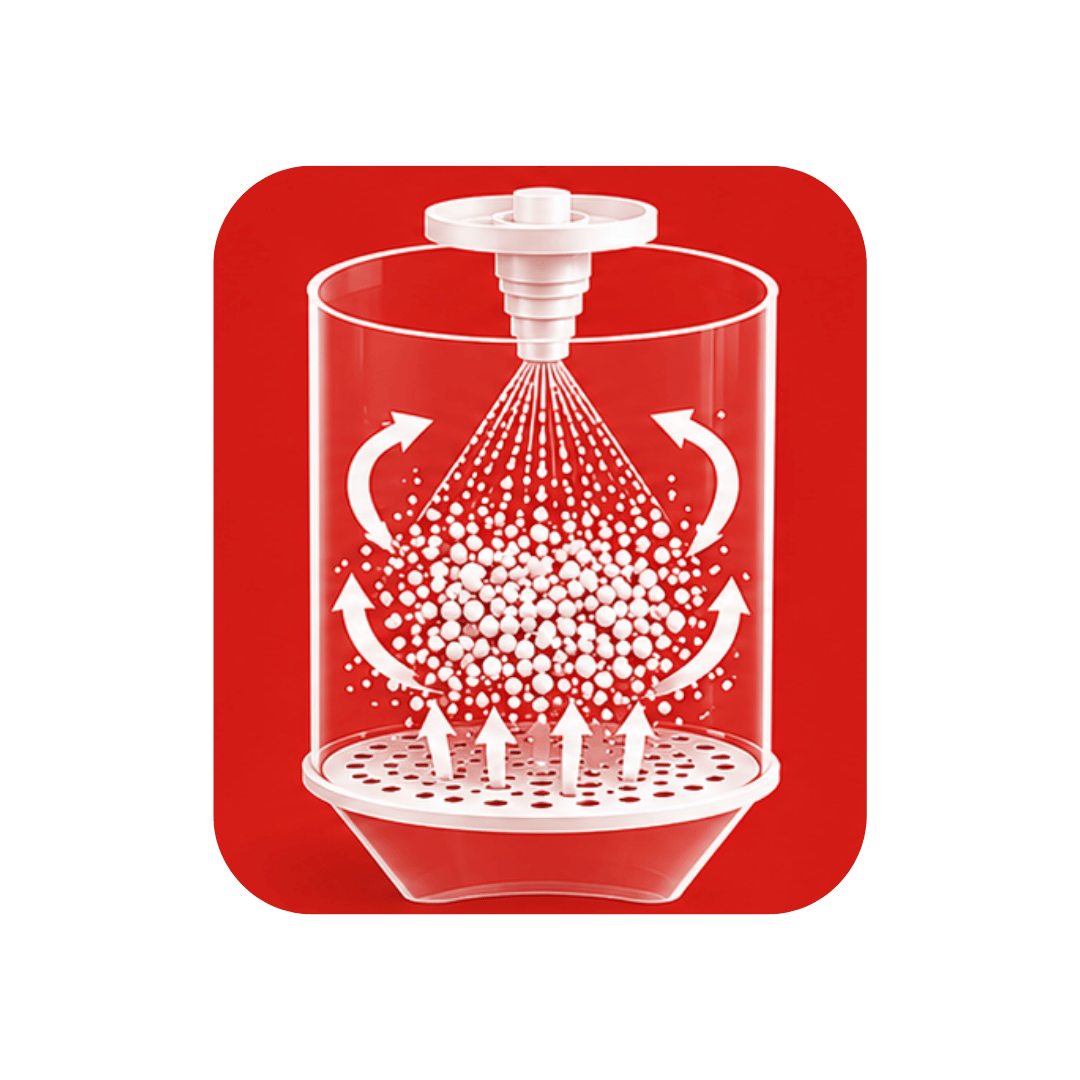

Top-spray granulation (FBG)
Uniform hot-air drying of wet granules discharged from the RMG. Programmable temperature and airflow profiles ensure consistent Loss on Drying (LOD) across every particle in the batch.

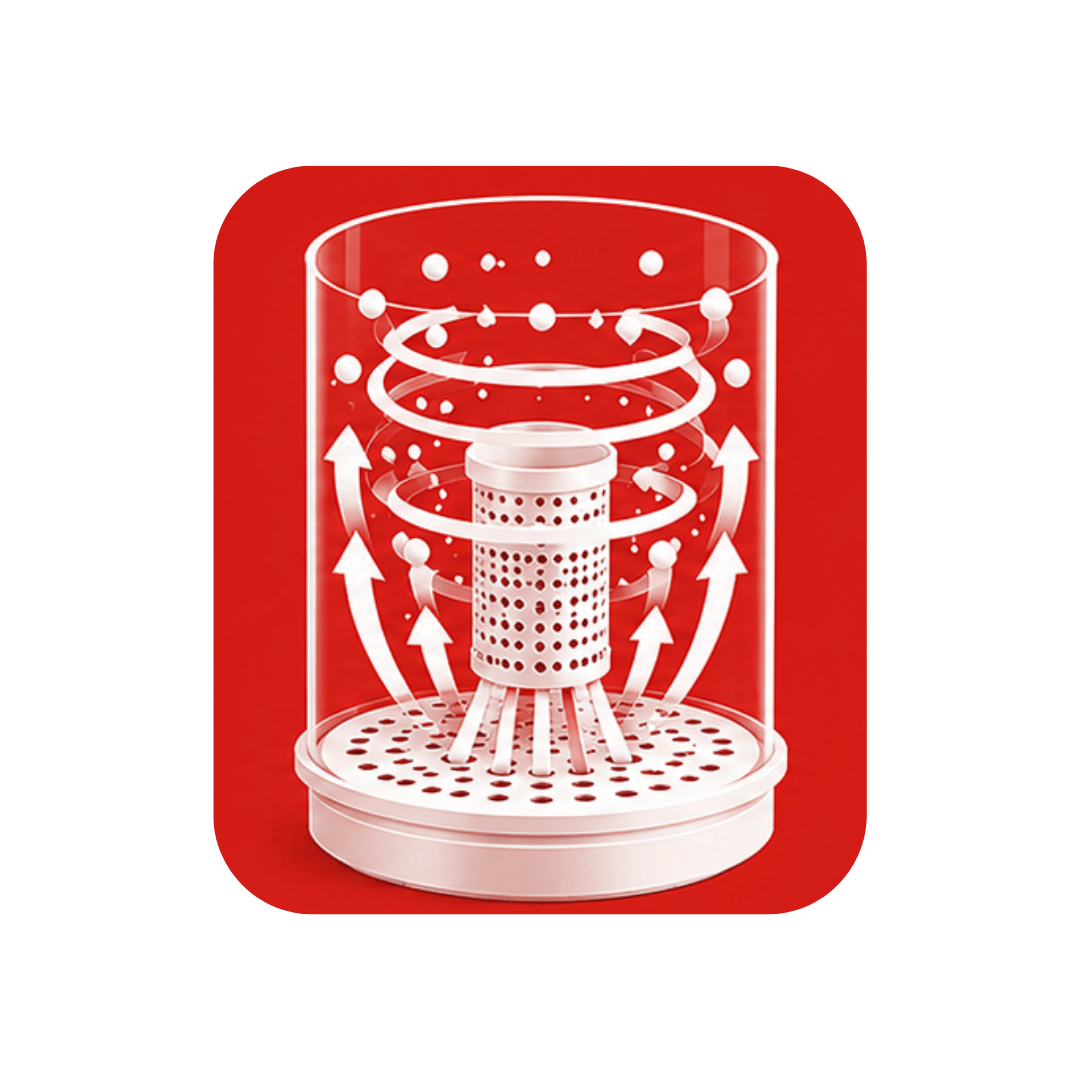

Bottom-spray coating (Wurster)
Precise film coating of pellets and granules via a Wurster insert. Achieves uniform coat weight gain for controlled-release, sustained-release, and enteric dosage forms.

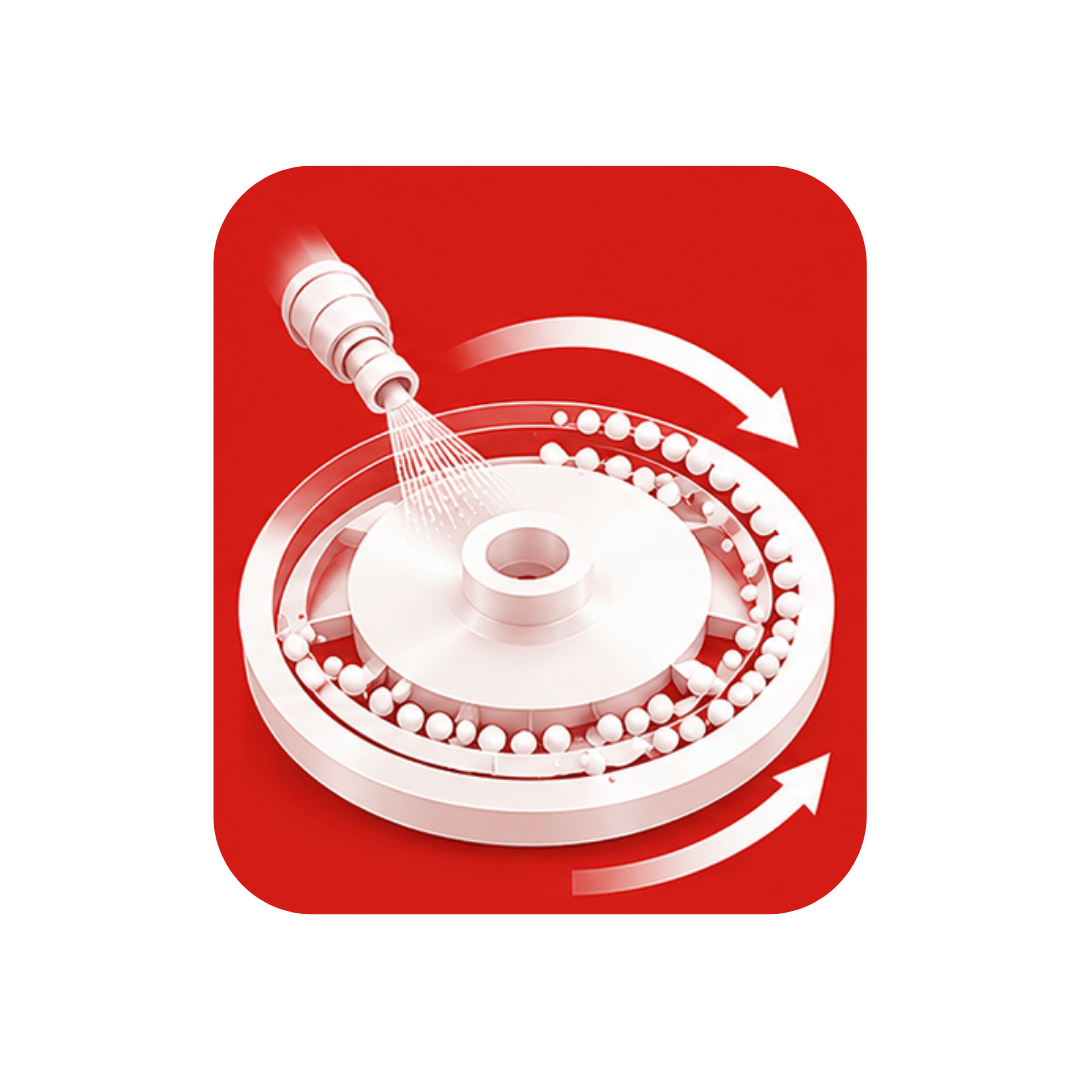

Tangential spray - Rotor pelletisation
A rotary disc at the base creates a toroidal particle path for dense, spherical pellet formation — ideal for pelletisation, active layering, and modified-release applications.
Key Features
- Multi-chamber expansion A retarding chamber slows particle velocity before bag filters, minimising fines carry over and maximising product yield per batch.
- Inflation bowl and bag seals Pneumatically inflated silicone seals at bowl junction and filter bag seats. This allows zero product leakage, validated for full containment in potent compound processing.
- Pulse jet / automated bag shaking Programmable filter bag cleaning during and between batches maintains consistent airflow resistance and prevents bag blinding throughout the drying cycle.
- High-efficiency AHU Integrated air handling unit with HEPA-grade filtration, steam or electric heating, and dehumidification for precise, reproducible inlet air conditions.
- FLP / EX-rated construction Flame-proof motors, anti-static earthing, and optional inert gas purge for solvent-based granulations and potent active processing in hazardous areas.
- Automated WIP / CIP Integrated spray ball nozzles in bowl and retarding chamber for validated wash-in-place and clean-in-place cycles requring no manual cleaning required between products.
Key Features
- Multi-chamber expansion A retarding chamber slows particle velocity before bag filters, minimising fines carry over and maximising product yield per batch.
- Inflation bowl and bag seals Pneumatically inflated silicone seals at bowl junction and filter bag seats. This allows zero product leakage, validated for full containment in potent compound processing.
- Pulse jet / automated bag shaking Programmable filter bag cleaning during and between batches maintains consistent airflow resistance and prevents bag blinding throughout the drying cycle.
- High-efficiency AHU Integrated air handling unit with HEPA-grade filtration, steam or electric heating, and dehumidification for precise, reproducible inlet air conditions.
- FLP / EX-rated construction Flame-proof motors, anti-static earthing, and optional inert gas purge for solvent-based granulations and potent active processing in hazardous areas.
- Automated WIP / CIP Integrated spray ball nozzles in bowl and retarding chamber for validated wash-in-place and clean-in-place cycles requring no manual cleaning required between products.
Technical specifications
Materials & construction
| Product contact material | SS 316L |
| Non-contact material | SS 304 |
| Product bowl geometry | Conical, GMP-polished |
| Internal surface finish | Ra ≤ 0.4 µm |
| Filter medium | Anti-static polyester bags |
Process parameters
| Inlet air temperature | Ambient to 120 °C |
| Inlet air humidity | Controlled via AHU dehumidifier |
| Airflow control | VFD blower with damper modulation |
| Product temperature sensor | RTD Pt100, in-bed probe |
Safety & exhaust
| Explosion protection | Pressure shock resistant body |
| Exhaust air filtration | Bag filter + HEPA terminal |
| Static dissipation | Earthing bonding throughout |
System integration
- Upstream from RMG: Receives wet granules via gravity chute or closed vacuum transfer – fully contained, no operator exposure.
- Downstream to mill & sifter: Dried granules discharged via bottom valve to inline Comil or vibro sifter for granule sizing before blending.
- HVAC integration: AHU connects to centralised HVAC system for GMP cleanroom differential pressure and temperature management.
- Shared CIP skid: Full granulation line – RMG + FBD + conveyors – cleaned in one automated, validated sequence from a single CIP skid.
